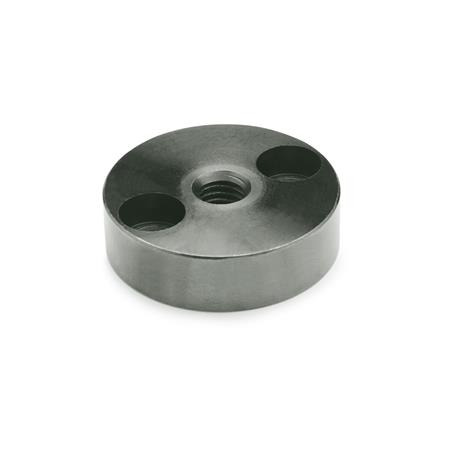

GN 349 Threaded Mounting Plates Steel, for Leveling Feet

GN 349 Steel Threaded Mounting Plates, for Leveling Feet sketch

Hide technical drawing

Part Options / Table

Part Number	d₁	d₂	d₃	d₄	h	k	t

8NKBA	1.42	M 8	0.21	0.39	0.39	0.94	0.21
10NKBA	1.42	M 10	0.21	0.39	0.39	0.94	0.21
12NKBA	1.42	M 12	0.21	0.39	0.39	0.94	0.21

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂			d₃	d₄	h	k	t

1.42	M 8	M 10	M 12	0.21	0.39	0.39	0.94	0.21

Build & Price

Diameter d₁

1.42

Thread d₂

M 8

M 10

M 12

Selected Part

Part Number

Total (net)

Mex$382.80

Available within 2 weeks

Quantity

Create project list

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$382.80
50	99	Mex$350.90
100	249	Mex$319.00
≥ 250		Mex$287.10

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.147 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
