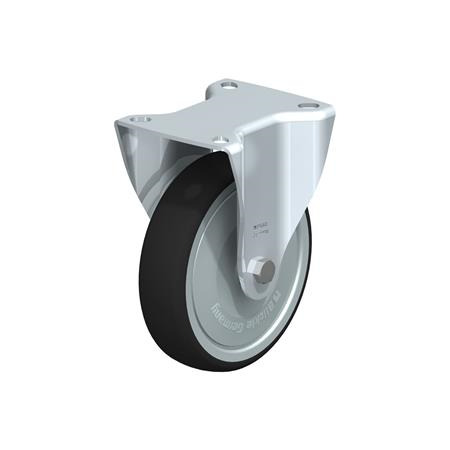

B-PATH Medium Duty Polyurethane Treaded Fixed Casters Steel, with Plate Mounting

Type: K-FK - Ball bearing with thread guard

Product description

Load capacity 150 - 400 kg.
Special construction of bracket results in extremely low swivel head play and long service life.
Low rolling resistance. Non-marking, non-staining.

Specification

Bracket
- Steel stamping, zinc plated, blue passivated finish, Cr6 free
- Bolted wheel axle

Wheel
- Thermoplastic polyurethane
- Hardness 94° shore A
- Dark gray
- Chemically bonded for an inseparable connection to the wheel centre

Wheel center/rim
- Impact-resistant nylon - Chemically bonded
- Gray

RoHS

On request

Individual wheels, series PATH

B-PATH Steel Medium Duty Polyurethane Treaded Fixed Casters, with Plate Mounting sketch

Hide technical drawing

Part Options / Table

Version

P1	Plate size (100 mm x 85 mm)
P3	Plate size (140 mm x 110 mm)
P12	Plate size (3 5/8" x 2 1/2")

Type

G	Plain bearing
K-FK	Ball bearing with thread guard

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number G - Plain bearing	Part Number K-FK - Ball bearing with thread guard	Nominal Wheel Diameter (Inch)	D Wheel Diameter	T₂ Tread Width	H Total Height	A x B Top Plate Diameter	a x b Bolt Hole Spacing	d Bolt Size	Load Capacity in N


80GBN2		3.125	3.15	1.26	4.02	100 x 85	80 x 60	M8 / 5/16"	315 lbf (1400 N)
100GBN3		4	3.94	1.26	4.92	100 x 85	80 x 60	M8 / 5/16"	427 lbf (1900 N)
125CBN3		5	4.92	1.26	5.91	100 x 85	80 x 60	M8 / 5/16"	427 lbf (1900 N)
160GBN2		6.3125	6.30	1.57	7.68	140 x 110	105 x 75-80	M10 / 3/8"	877 lbf (3900 N)
200GBN2		8	7.87	1.57	9.25	140 x 110	105 x 75-80	M10 / 3/8"	877 lbf (3900 N)
	B-PATH-100-P12-K-FK	4	3.94	1.26	4.92	3 5/8 x 2 1/2	3 1/16 - 2 13/16 x 1 3/4	M8_/_5/16"	427 lbf (1900 N)
	B-PATH-125-P12-K-FK	5	4.92	1.26	5.91	3 5/8 x 2 1/2	3 1/16 - 2 13/16 x 1 3/4	M8_/_5/16"	427 lbf (1900 N)

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

Nominal Wheel Diameter (Inch)	D Wheel Diameter	T₂ Tread Width	H Total Height	A x B Top Plate Diameter	a x b Bolt Hole Spacing	d Bolt Size	Load Capacity in N

4	3.94	1.26	4.92	3 5/8 x 2 1/2	3 1/16 - 2 13/16 x 1 3/4	M8_/_5/16"	427 lbf (1900 N)
5	4.92	1.26	5.91	3 5/8 x 2 1/2	3 1/16 - 2 13/16 x 1 3/4	M8_/_5/16"	427 lbf (1900 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

Nominal Wheel Diameter (Inch)	D Wheel Diameter	T₂ Tread Width	H Total Height	A x B Top Plate Diameter	a x b Bolt Hole Spacing	d Bolt Size	Load Capacity in N

3.125	3.15	1.26	4.02	100 x 85	80 x 60	M8 / 5/16"	315 lbf (1400 N)
4	3.94	1.26	4.92	100 x 85	80 x 60	M8 / 5/16"	427 lbf (1900 N)
5	4.92	1.26	5.91	100 x 85	80 x 60	M8 / 5/16"	427 lbf (1900 N)
6.3125	6.30	1.57	7.68	140 x 110	105 x 75-80	M10 / 3/8"	877 lbf (3900 N)
8	7.87	1.57	9.25	140 x 110	105 x 75-80	M10 / 3/8"	877 lbf (3900 N)
