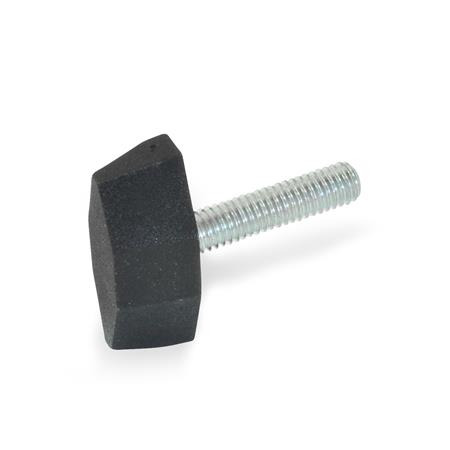

GS Wing Screws Nylon Plastic, with Steel Threaded stud

Standard Sheet GS Print This Page Plastic Characteristics

Product description

Due to their low height wing screws GS offer a comfortable grip for quick two finger clamping applications.

Specification

Wing body
Nylon plastic

Glass filled
Temperature resistant up to 230 °F (110 °C)
Black, matte finish

Threaded stud
Steel, zinc plated

RoHS

On request

For certain minimum quantities, custom colors or special studs

GS Nylon Plastic Wing Screws, with Steel Threaded Stud sketch

Hide technical drawing

Part Options / Table

Part Number	d₁	d₂	Length l	b	h

6378010	0.87	M 4	0.39	0.35	0.39
6378020	0.87	M 5	0.39	0.35	0.39
6378025	0.87	M 5	0.59	0.35	0.39
6378050	1.02	M 5	0.39	0.43	0.43
6378055	1.02	M 5	0.59	0.43	0.43
6378070	1.02	M 6	0.39	0.43	0.43
6378075	1.02	M 6	0.59	0.43	0.43
6378080	1.02	M 6	0.79	0.43	0.43
6378085	1.02	M 6	0.98	0.43	0.43
6378150	1.26	M 6	0.39	0.47	0.47
6378155	1.26	M 6	0.59	0.47	0.47
6378160	1.26	M 6	0.79	0.47	0.47
6378165	1.26	M 6	0.98	0.47	0.47

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	Length l				b	h

0.87	M 4	0.39	-	-	-	0.35	0.39
0.87	M 5	0.39	0.59	-	-	0.35	0.39
1.02	M 5	0.39	0.59	-	-	0.43	0.43
1.02	M 6	0.39	0.59	0.79	0.98	0.43	0.43
1.26	M 6	0.39	0.59	0.79	0.98	0.47	0.47

Build & Price

Selected Part

Part Number

Total (net)

Mex$19.80

Available within 2 weeks

Quantity

Create project list

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$19.80
100	249	Mex$18.15
250	499	Mex$16.50
≥ 500		Mex$14.85

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.006 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
