Product description
Knurled nuts DIN 466 can be tightened and loosened easily without tools.
Specification
Steel
- Property class 5
- Visible face fine turned
- Zinc plated, blue passivated finishZB
RoHS

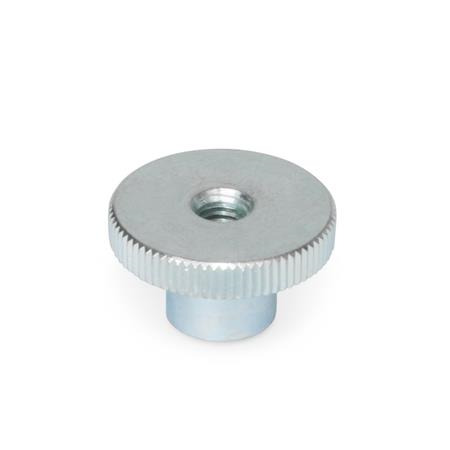

DIN 466 Knurled Nuts Steel, Zinc Plated, High Type, with Tapped Through Bore
Hide technical drawing
Part Options / Table
Show / Hide columns
Metric
Dimensions in: Inch (change to Metric)
| d1 | d2 | d3 | h | k |
|---|---|---|---|---|
| M 2 | 0.35 | 0.18 | 0.21 | 0.08 |
| M 2.5 | 0.43 | 0.20 | 0.26 | 0.10 |
| M 3 | 0.47 | 0.24 | 0.30 | 0.10 |
| M 4 | 0.63 | 0.31 | 0.37 | 0.14 |
| M 5 | 0.79 | 0.39 | 0.45 | 0.16 |
| M 6 | 0.94 | 0.47 | 0.59 | 0.20 |
| M 8 | 1.18 | 0.63 | 0.71 | 0.24 |
| M 10 | 1.42 | 0.79 | 0.91 | 0.31 |
| M 12 | 1.57 | 0.87 | 0.98 | 0.39 |
Build & Price
Selected Part
Total (net)
Mex$58.80
Save as Favorites
Recommend a product
Please note our quantity discounts (Mexican Pesos).
| Min | Max | Price |
|---|---|---|
| 1 | 99 | Mex$82.32 |
| 100 | 249 | Mex$75.46 |
| 250 | 499 | Mex$68.60 |
| ≥ 500 | Mex$61.74 |
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.001 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
